Video Player AVPro
The VideoPlayer_AVPro component is meant to act as an out of the box replacement for the Unity VideoPlayer component. It acts as a wrapper for converting VideoPlayer variables/functions to their MediaPlayer equivalents.
Conversion
To convert a VideoPlayer to the VideoPlayer_AVPro component, you can either use the context menu on the VideoPlayer to automatically convert it, or use the context menu on an already added VideoPlayer_AVPro.
See Usage Guide for more information.

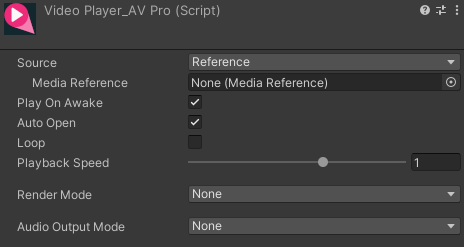

Properties
| Property | Function |
|---|---|
| Source | Specifies the type of source - either Media Reference or Path. Media Reference allows selection of an existing media asset. Path allows specifying media direct into the VideoPlayer_AVPro |
| Media Reference | The MediaReference asset to use for loading |
| Source Path | The location of the media (URL or file path) |
| Play On Awake | Play the media as soon as it has loaded |
| Auto Open | Open/Load the media on Start |
| Loop | Loop the playback |
| Playback Speed | Speed up or slow down playback by this rate |
| Render Mode | Selects the rendering mode to be used (See Render Mode) |
| Audio Output Mode | Selects the audio output mode to be used (See Audio Output Mode) |
Render Mode
Unlike Unity's VideoPlayer AVPro does not display the video in the unity scene. To do this you need to select one of the options from the RenderMode dropdown which will automatically add the required component to the current object.
Mesh
The mesh option will apply the video to the selected renderer through its materials. See Apply To Mesh for more information.
Property Function Renderer The target Renderer (eg MeshRenderer) to apply the video texture to Texture Property The name of the Material texture to set. The default texture property depends on the render pipeline used. Standard shaders use _MainTex. URP shaders use _Basemap. HDRP shaders use _BasecolorMap Material
The Material option will apply the video to the selected material. See Apply To Material for more information.
Property Function Material The target Material to apply the video texture to Texture Property The name of the Material texture to set. The default texture property depends on the render pipeline used. Standard shaders use _MainTex. URP shaders use _Basemap. HDRP shaders use _BasecolorMap uGUI

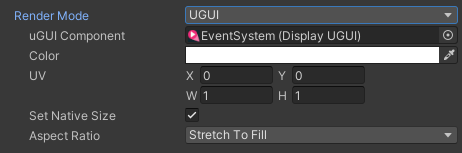

The uGUI option will display the video on screen using the standard unity UI system. This render mode works differently to the rest, and as such the componenet will have to be added manually by the user. This is because it needs to be attached to a canvas with a canvas renderer to function correctly. See Display uGUI for more information.
Property Function uGUI Component The Display uGUI component that is being used Color The color to multiply the video by. Useful for fading to black or fading to transparent UV Scaling and offset to apply to the texture Set Native Size Adjust the size of the RectTransform to match the resolution of the video texture Aspect Ratio Aspect ratio fitting mode to use IMGUI
The IMGUI option will display the video on screen using the legacy IMGUI rendering system. See Display IMGUI for more information.
Property Function Full Screen Whether to display across the entire screen or allow a rectangle area to be specified Color The color to multiply the video by. Useful for fading to black or fading to transparent Aspect Ratio Aspect ratio fitting mode to use Camera Far Plane
The CameraFarPlane option will display the video at the camera far plane, i.e. behind all other objects in the scene. See Apply To Far Plane for more information. Note - This does not work if the background clear mode of the camera is set to Skybox
Property Function Color The color to multiply the video by. Useful for fading to black or fading to transparent Aspect Ratio Aspect ratio fitting mode to use Alpha The alpha of the displayed video Render Texture
The RenderTexture option will render the video to a Unity
RenderTexture. See ResolveToRenderTexture for more information.Property Function Render Texture Render Texture to render the video out to Aspect Ratio Aspect ratio fitting mode to use None
When None is selected, no componenet will be added. Instead it is presumed that you have created a custom script that will handle the rendering of the video.
Audio Output Mode
The audio output mode will allow the you to select how the audio is played.
| Global Properties | Function |
|---|---|
| Volume | Volume in 0..1 range |
| Mute | Whether to mute audio playback |
System
Will play the audio directly from the system.
Unity
Will play the audio through a Unity
AudioSourcewhich is automatically added to the gameobject upon selection, as well as an AudioOutput Component.Unique Properties Function AudioSource The AudioSource to use for audio playback Facebook Audio 360

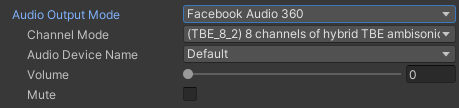

Will play the audio using Facebooks 360 audio. See 360 Audio For more information.
Unique Properties Function Channel Mode Channel Mode to use during audio playback Audio Device name Audio Device to use for playback None Audio
When None is selected no audio will be played.
Api
Unity Wrapper
following is a list of all properties/methods/events/delegates of the Unity VideoPlayer that have been wrapped, as well as a explanation of the funconality differences and a compatability ranking.
Unity's VideoPlayer scripting API can be found Here
| Icon | Meaning |
|---|---|
| - | AVPro does not contain any similar functionality, a warning will show on use |
| ! | AVPro has similar functionality, but it may be a differernt Type / workings under the hood. |
| # | Full Functionality |
Static Properties
| Property | Functonality | Compatability |
|---|---|---|
| controlledAudioTrackMaxCount | No Similar Functionality | - |
Properties
| Property | Functonality / Differences | Compatability |
|---|---|---|
| aspectRatio | Uses ScaleMode to set how a video fits the target area, unless using CameraFarPlane or RenderTexture which both use VideoResolveOptions.AspectRatio |
! |
| audioOutputMode | automatically converts VideoAudioOutputMode to correct AVPro audio output depending on the platform, stored in audioOutputModeAVPro |
! |
| audioTrackCount | N/A | # |
| canSetDirectAudioVolume | N/A | # |
| canSetPlaybackSpeed | N/A | # |
| canSetSkipOnDrop | Although this functions, canSetSkipOnDrop has no functionality within AVPro | # |
| canSetTime | N/A | # |
| canSetTimeUpdateMode | Although this functions timeUpdateMode has no functionality within AVPro | # |
| canStep | N/A | # |
| clip | Uses MediaReference insted of VideoClip, video clips will be converted when converting between VideoPlayer and VideoPlayer_AVPro, but will have to be done manually elseware. |
! |
| clockTime | When not using the resampler it is possible to reset the total number of frames, which would cause this calcualted value to be incorrect. | # |
| controlledAudioTrackCount | AVPro only supports 1 active audio track | ! |
| externalReferenceTime | No Similar Functionality | - |
| frame | N/A | # |
| frameCount | N/A | # |
| frameRate | N/A | # |
| height | N/A | # |
| isLooping | N/A | # |
| isPaused | N/A | # |
| isPlaying | N/A | # |
| isPrepared | Returns true if the content can be played | # |
| length | N/A | # |
| pixelAspectRatioDenominator | No Similar Functionality | - |
| pixelAspectRatioNumerator | No Similar Functionality | - |
| playbackSpeed | N/A | # |
| playOnAwake | N/A | # |
| renderMode | Automatically Converts VideoRenderMode to DisplayType, stored in rendererMode |
# |
| sendFrameReadyEvents | No Similar Functionality | - |
| skipOnDrop | No Similar Functionality | - |
| source | Automatically converts VideoSource to MediaSource, stored in sourceAVPro |
# |
| targetCamera | N/A | # |
| targetCamera3DLayout | No Similar Functionality | - |
| targetCameraAlpha | Changes the alpah setting for each of the DisplayTypes |
# |
| targetMaterialProperty | N/A | # |
| targetMaterialRenderer | N/A | # |
| targetTexture | N/A | # |
| texture | N/A | # |
| time | N/A | # |
| timeReference | No Similar Functionality | - |
| timeUpdateMode | No Similar Functionality | - |
| url | uses MediaPath, but will allow getting/setting as string. |
# |
| waitForFirstFrame | No Similar Functionality | - |
| width | N/A | # |
Public Methods
| Public Method | Functonality / Differences | Compatability |
|---|---|---|
| EnableAudioTrack | Set active audio track, AVPro does not currently support more than 1 audio track being active. | ! |
| GetAudioChannelCount | N/A | # |
| GetAudioLanguageCode | N/A | # |
| GetAudioSampleRate | returns the global audio sameple rate | ! |
| GetDirectAudioMute | N/A | # |
| GetDirectAudioVolume | N/A | # |
| GetTargetAudioSource | N/A | # |
| IsAudioTrackEnabled | N/A | # |
| Pause | N/A | # |
| Play | N/A | # |
| Prepare | N/A | # |
| SetDirectAudioMute | N/A | # |
| SetDirectAudioVolume | N/A | # |
| SetTargetAudioSource | N/A | # |
| StepForward | N/A | # |
| Stop | N/A | # |
Events
| Event | Functonality / Differences | Compatability |
|---|---|---|
| clockResyncOccurred | No Similar Functionality | - |
| errorReceived | N/A | # |
| frameDropped | No Similar Functionality | - |
| frameReady | No Similar Functionality | - |
| loopPointReached | No Similar Functionality | - |
| prepareCompleted | N/A | # |
| seekCompleted | N/A | # |
| started | N/A | # |
Delegates
| Delegate | Functonality / Differences | Compatability |
|---|---|---|
| ErrorEventHandler | N/A | # |
| EventHandler | N/A | # |
| FrameReadyEventHandler | N/A | # |
| TimeEventHandler | N/A | # |
Custom Methods/Properties
Properties
| Property | Functonality |
|---|---|
| sourceAVPro | The source that the VideoPlayer_AVPro will use for playback |
| targetMaterial | Material that is targeted when rendererMode is set to DisplayType.Material |
| rendererMode | Where/how the video content will be drawn. Will create the desired components when renderer mode is changed |
| audioOutputModeAVPro | Destination for the audio embedded in the video. |
| color | Color property which is targeted when rendererMode is set to: DisplayType.IMGUI, DisplayType.uGUI, DisplayType.RenderTexture |
| fullScreen | used to toggle fullscreen when rendererMode is set to: DisplayType.IMGUI |
| volume | Increase/Decrease the global volume of the audio |
| muted | Toggle the audio |
| audioSource | The AudioSource to use when audioOutputModeAVPro is set to play though Unity |
| uvRect | The Rect to use to control texture scaling/offset when rendererMode is set to DisplayType.uGUI |
Public Methods
| Method | Functonality |
|---|---|
| VideoPlayerTo_AVPro_MenuItem | Converts the attached VideoPlayer componenet to a VideoPlayer_AVPro component, through the context menu of the VideoPlayer. |
| VideoPlayertoAVProConversion | Adds a context menu option to VideoPlayer_AVPro that will copy all of the data from a Unity VideoPlayer into the VideoPlayer_AVPro. making conversions where neccessary. |
| ConvertToMediaPlayer | This method will convert a VideoPlayer_AVPro component to a MediaPlayer component. |
| CreateAudioComponents | Creates an AudioOutput component that will be used to play audio when selecting the Unity option from the list of audio output modes. |
| CreateRendererComponents | Creates the components for the differernt rendering modes. This method also calls DestroyRendererBehaviours to handles the destruction of the previous rendering mode components. |
| DestroyAudioOutputBehaviour | Destroys the AudioOutput component attached to this object. |
| DestroyRendererBehaviours | Destroys the rendering mode components attatched to the current object, can handle more than 1 type but not multiple of the same type. |
| SetOutputModeContextual | This will set the output mode based on the context. Material - Object containing a Renderer component with material attache UGUI - Object containing both a CanvasRenderer and RectTransform IMGUI - Default Option |
| OutputModeSet | returns true if any output mode has been set otherwise returns false |
Video Clip
| Unity VideoClip | AVPro MediaReference |
|---|---|
 |
 |

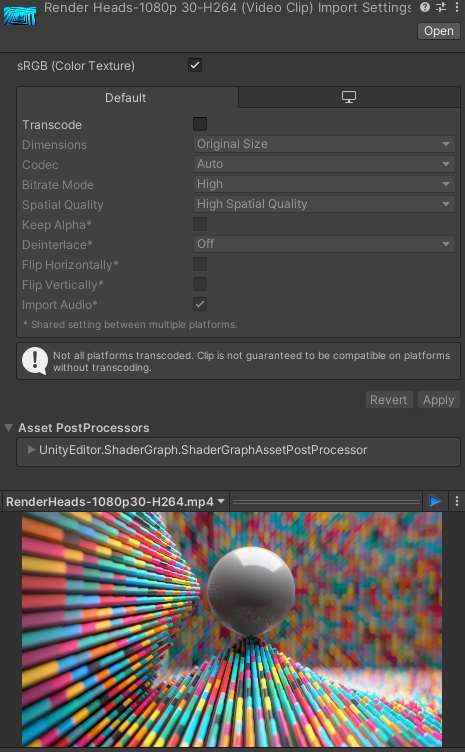

Unity's VideoPlayer and AVPro use "clips" in very differernt ways. The Unity VideoClip contains the media itself, whereas AVPro's MediaReference holds the path to the media, and its properties.
This means that most calls to VideoClip functions will have to be changed manually to make them have the correct functionality.
See MediaReference for more information.
| VideoClip | VideoPlayer_AVPro Equivalent |
|---|---|
| VideoClip.audioTrackCount | VideoPlayer_AVPro.audioTrackCount |
| VideoClip.frameCount | VideoPlayer_AVPro.frameCount |
| VideoClip.frameRate | VideoPlayer_AVPro.frameRate |
| VideoClip.height | VideoPlayer_AVPro.height |
| VideoClip.length | VideoPlayer_AVPro.length |
| VideoClip.originalPath | Path is stored within MediaReference |
| VideoClip.pixelAspectRatioDenominator | VideoPlayer_AVPro pixelAspectRationDenominator |
| VideoClip.pixelAspectRatioNumerator | VideoPlayer_AVPro.pixelAspectRationNumerator |
| VideoClip.sRGB | VideoPlayer_AVPro.Info.PlayerSupportsLinearColorSpace |
| VideoClip.width | VideoPlayer_AVPro.width |
| VideoClip.GetAudioChannelCount(ushort audioTrackIdx) | VideoPlayer_AVPro.GetAudioChannelCount(audioTrackIdx) |
| VideoClip.GetAudioLanguage(ushort audioTrackIdx) | VideoPlayer_AVPro.GetAudioLanguageCode(audioTrackIdx) |
| VideoClip.GetAudioSampleRate(ushort audioTrackIdx) | VideoPlayer_AVPro.GetAudioSampleRate(audioTrackIdx) |
