AVPro DeckLink C# Documentation
Public Types | Public Member Functions | Static Public Member Functions | Data Fields | Protected Member Functions | Properties | Private Member Functions | Private Attributes | Static Private Attributes
RenderHeads.Media.AVProDeckLink.DeckLinkOutput Class Reference
Inheritance diagram for RenderHeads.Media.AVProDeckLink.DeckLinkOutput:
Inheritance graph
[legend]

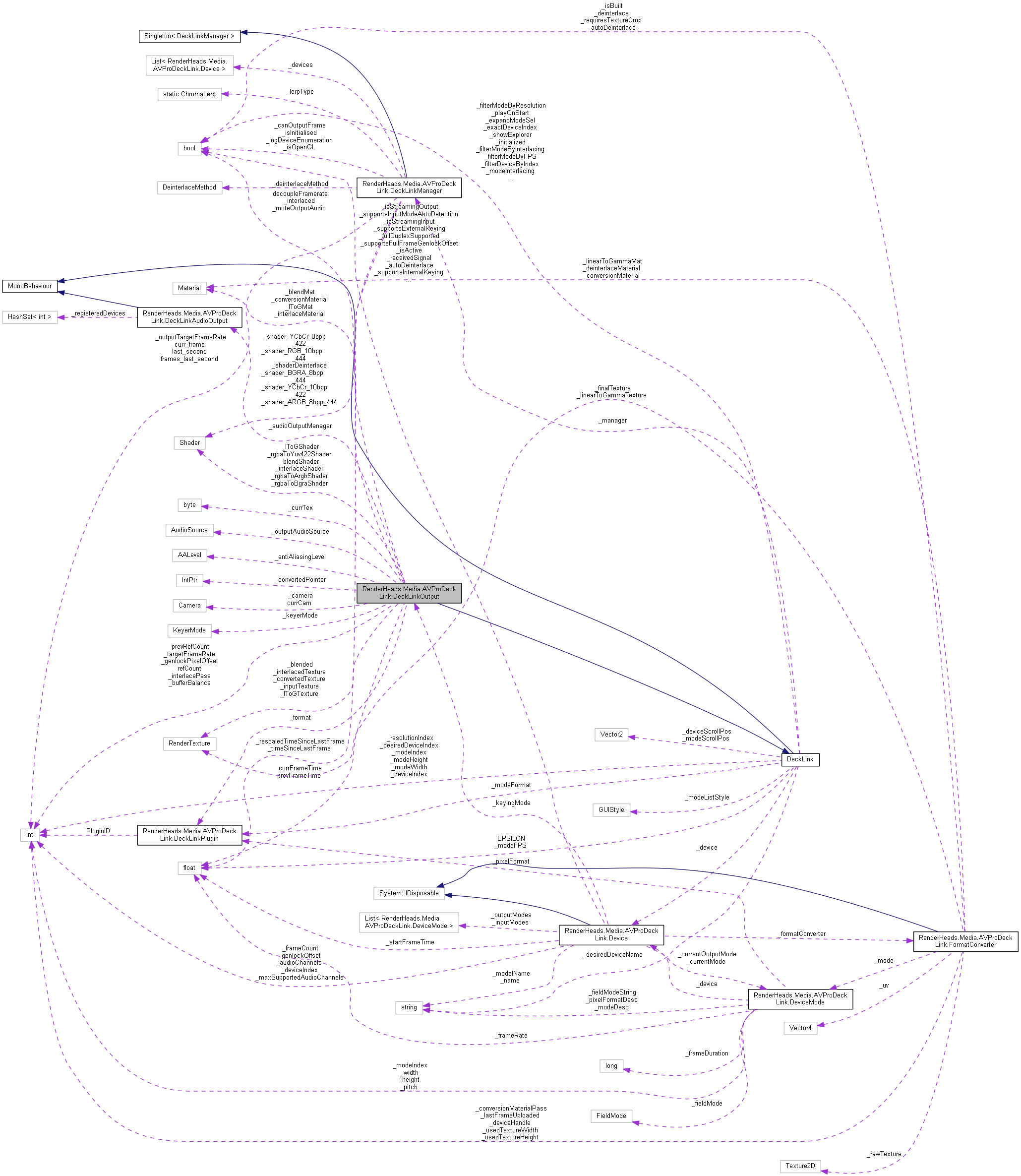

Collaboration diagram for RenderHeads.Media.AVProDeckLink.DeckLinkOutput:
Collaboration graph
[legend]

Public Types

enum  AALevel { AALevel.None = 1, AALevel.Two = 2, AALevel.Four = 4, AALevel.Eight = 8 }

enum  KeyerMode { KeyerMode.None = 0, KeyerMode.Internal, KeyerMode.External }


Public Member Functions

bool StopOutput ()

void SetCamera (Camera camera)

override void Awake ()

override void OnDestroy ()

- Public Member Functions inherited from RenderHeads.Media.AVProDeckLink.DeckLink
void RenderExplorer ()

void Start ()

void Begin ()

void Update ()


Static Public Member Functions

static bool OutputFormatSupported (DeckLinkPlugin.PixelFormat format)

- Static Public Member Functions inherited from RenderHeads.Media.AVProDeckLink.DeckLink
static int GetNumDevices ()

static Device GetDevice (int deviceIndex)


Data Fields

AALevel _antiAliasingLevel = AALevel.Two

Camera _camera

int _bufferBalance = 2

int _genlockPixelOffset = 0

AudioSource _outputAudioSource

bool _muteOutputAudio = false

KeyerMode _keyerMode = KeyerMode.None

- Data Fields inherited from RenderHeads.Media.AVProDeckLink.DeckLink
bool _showExplorer = false

bool _expandPreview = false

int _deviceIndex = -1

int _modeIndex = -1

int _resolutionIndex = -1

bool _playOnStart = true

bool _expandDeviceSel

bool _expandModeSel

bool _expandAbout

bool _exactDeviceName = false

string _desiredDeviceName = "DeckLink"

int _desiredDeviceIndex = -1

bool _exactDeviceIndex = false

bool _filterDeviceByName = false

bool _filterDeviceByIndex = false

bool _filterModeByResolution = false

bool _filterModeByFormat = false

bool _filterModeByFPS = false

bool _filterModeByInterlacing = false

int _modeWidth = 1920

int _modeHeight = 1080

DeckLinkPlugin.PixelFormat _modeFormat = DeckLinkPlugin.PixelFormat.Unknown

float _modeFPS = 29.97f

bool _modeInterlacing = false


Protected Member Functions

override void Process ()

override void Cleanup ()

override bool IsInput ()

override void BeginDevice ()

- Protected Member Functions inherited from RenderHeads.Media.AVProDeckLink.DeckLink
int FindClosestMatchingMode (int deviceIndex, bool isInput)

int FindClosestMatchingDevice ()


Properties

RenderTexture InputTexture [get]

int TargetFramerate [get]

- Properties inherited from RenderHeads.Media.AVProDeckLink.DeckLink
Device Device [get]

int DeviceIndex [get, set]

int ModeIndex [get, set]

bool Initialized [get]


Private Member Functions

void InitColorspaceResources (int inputTexWidth, int inputTexHeight, RenderTextureFormat format)

void InitConversionResources (DeckLinkPlugin.PixelFormat format, int width, int height)

void InitInterlaceResources (int width, int height)


Private Attributes

Shader _rgbaToYuv422Shader

Shader _rgbaToBgraShader

Shader _rgbaToArgbShader

Shader _interlaceShader

Shader _lToGShader

RenderTexture _inputTexture

RenderTexture _interlacedTexture

RenderTexture[] _convertedTexture = null

RenderTexture _lToGTexture

Material _interlaceMaterial

Material _conversionMaterial

Material _lToGMat

DeckLinkPlugin.PixelFormat _format = DeckLinkPlugin.PixelFormat.Unknown

Camera currCam

bool _interlaced

int _targetFrameRate = -1

int _interlacePass = 0

IntPtr _convertedPointer = IntPtr.Zero

RenderTexture _blended

byte _currTex = 0

Shader _blendShader

Material _blendMat

float prevFrameTime = 0.0f

float currFrameTime = 0.0f

bool decoupleFramerate = false

DeckLinkAudioOutput _audioOutputManager = null


Static Private Attributes

static int refCount = 0

static int prevRefCount


Additional Inherited Members

- Static Protected Member Functions inherited from RenderHeads.Media.AVProDeckLink.DeckLink
static void SavePNG (string filePath, RenderTexture rt)

- Protected Attributes inherited from RenderHeads.Media.AVProDeckLink.DeckLink
Device _device = null

DeckLinkManager _manager = null

bool _initialized = false


Member Enumeration Documentation

enum RenderHeads.Media.AVProDeckLink.DeckLinkOutput.AALevel
strong
Enumerator
None
Two
Four
Eight
enum RenderHeads.Media.AVProDeckLink.DeckLinkOutput.KeyerMode
strong
Enumerator
None
Internal
External

Member Function Documentation

void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.InitColorspaceResources ( int  inputTexWidth,
int  inputTexHeight,
RenderTextureFormat  format
)
inlineprivate
void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.InitConversionResources ( DeckLinkPlugin.PixelFormat  format,
int  width,
int  height
)
inlineprivate
void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.InitInterlaceResources ( int  width,
int  height
)
inlineprivate
static bool RenderHeads.Media.AVProDeckLink.DeckLinkOutput.OutputFormatSupported ( DeckLinkPlugin.PixelFormat  format)
inlinestatic
bool RenderHeads.Media.AVProDeckLink.DeckLinkOutput.StopOutput ( )
inline
void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.SetCamera ( Camera  camera)
inline
override void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.Process ( )
inlineprotectedvirtual

Implements RenderHeads.Media.AVProDeckLink.DeckLink.

override void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.Cleanup ( )
inlineprotectedvirtual

Implements RenderHeads.Media.AVProDeckLink.DeckLink.

override bool RenderHeads.Media.AVProDeckLink.DeckLinkOutput.IsInput ( )
inlineprotectedvirtual

Implements RenderHeads.Media.AVProDeckLink.DeckLink.

override void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.Awake ( )
inlinevirtual

Reimplemented from RenderHeads.Media.AVProDeckLink.DeckLink.

override void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.OnDestroy ( )
inlinevirtual

Reimplemented from RenderHeads.Media.AVProDeckLink.DeckLink.

override void RenderHeads.Media.AVProDeckLink.DeckLinkOutput.BeginDevice ( )
inlineprotectedvirtual

Implements RenderHeads.Media.AVProDeckLink.DeckLink.

Field Documentation

int RenderHeads.Media.AVProDeckLink.DeckLinkOutput.refCount = 0
staticprivate
int RenderHeads.Media.AVProDeckLink.DeckLinkOutput.prevRefCount
staticprivate
Shader RenderHeads.Media.AVProDeckLink.DeckLinkOutput._rgbaToYuv422Shader
private
Shader RenderHeads.Media.AVProDeckLink.DeckLinkOutput._rgbaToBgraShader
private
Shader RenderHeads.Media.AVProDeckLink.DeckLinkOutput._rgbaToArgbShader
private
Shader RenderHeads.Media.AVProDeckLink.DeckLinkOutput._interlaceShader
private
Shader RenderHeads.Media.AVProDeckLink.DeckLinkOutput._lToGShader
private
RenderTexture RenderHeads.Media.AVProDeckLink.DeckLinkOutput._inputTexture
private
RenderTexture RenderHeads.Media.AVProDeckLink.DeckLinkOutput._interlacedTexture
private
RenderTexture [] RenderHeads.Media.AVProDeckLink.DeckLinkOutput._convertedTexture = null
private
RenderTexture RenderHeads.Media.AVProDeckLink.DeckLinkOutput._lToGTexture
private
Material RenderHeads.Media.AVProDeckLink.DeckLinkOutput._interlaceMaterial
private
Material RenderHeads.Media.AVProDeckLink.DeckLinkOutput._conversionMaterial
private
Material RenderHeads.Media.AVProDeckLink.DeckLinkOutput._lToGMat
private
DeckLinkPlugin.PixelFormat RenderHeads.Media.AVProDeckLink.DeckLinkOutput._format = DeckLinkPlugin.PixelFormat.Unknown
private
Camera RenderHeads.Media.AVProDeckLink.DeckLinkOutput.currCam
private
bool RenderHeads.Media.AVProDeckLink.DeckLinkOutput._interlaced
private
int RenderHeads.Media.AVProDeckLink.DeckLinkOutput._targetFrameRate = -1
private
int RenderHeads.Media.AVProDeckLink.DeckLinkOutput._interlacePass = 0
private
AALevel RenderHeads.Media.AVProDeckLink.DeckLinkOutput._antiAliasingLevel = AALevel.Two
IntPtr RenderHeads.Media.AVProDeckLink.DeckLinkOutput._convertedPointer = IntPtr.Zero
private
Camera RenderHeads.Media.AVProDeckLink.DeckLinkOutput._camera
RenderTexture RenderHeads.Media.AVProDeckLink.DeckLinkOutput._blended
private
byte RenderHeads.Media.AVProDeckLink.DeckLinkOutput._currTex = 0
private
Shader RenderHeads.Media.AVProDeckLink.DeckLinkOutput._blendShader
private
Material RenderHeads.Media.AVProDeckLink.DeckLinkOutput._blendMat
private
float RenderHeads.Media.AVProDeckLink.DeckLinkOutput.prevFrameTime = 0.0f
private
float RenderHeads.Media.AVProDeckLink.DeckLinkOutput.currFrameTime = 0.0f
private
int RenderHeads.Media.AVProDeckLink.DeckLinkOutput._bufferBalance = 2
int RenderHeads.Media.AVProDeckLink.DeckLinkOutput._genlockPixelOffset = 0
AudioSource RenderHeads.Media.AVProDeckLink.DeckLinkOutput._outputAudioSource
bool RenderHeads.Media.AVProDeckLink.DeckLinkOutput._muteOutputAudio = false
bool RenderHeads.Media.AVProDeckLink.DeckLinkOutput.decoupleFramerate = false
private
DeckLinkAudioOutput RenderHeads.Media.AVProDeckLink.DeckLinkOutput._audioOutputManager = null
private
KeyerMode RenderHeads.Media.AVProDeckLink.DeckLinkOutput._keyerMode = KeyerMode.None

Property Documentation

RenderTexture RenderHeads.Media.AVProDeckLink.DeckLinkOutput.InputTexture
get
int RenderHeads.Media.AVProDeckLink.DeckLinkOutput.TargetFramerate
get
The documentation for this class was generated from the following file:
