Timeline Playables

This component allows some basic control over the MediaPlayer component via the Timeline in the Timeline Package.

Setup

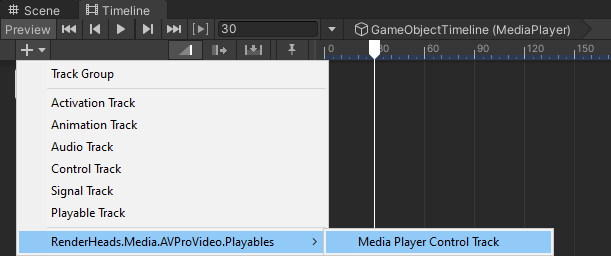

First the Track is added to the timeline:

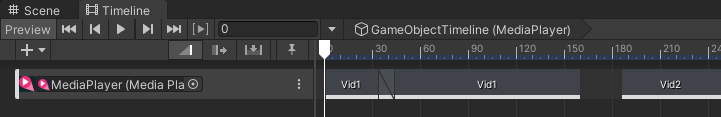

Next clips can be added to track by right-clicking on the track and selecting "Add Media Player Control Asset". Clips can overlap to allow some properties to animate. Currently only Audio Volume will animate.

Each clip can then be set up with properties for controlling the MediaPlayer.

Properties

Property	Function
Media Reference	The media to load
Audio Volume	0 to 1 range of audio volume
Start Time	The time in seconds to start from when new media is loaded. Negative values are ignored.
Pause On End	Whether to pause playback when the clips ends



Installing

This is an extension as it requires the optional Timeline package from the Package Manager, so it requires some setup the first time you use it:

1. Add the Timeline package to your project from the Package Manager.
2. Add the Timeline package assembly Unity.Timeline to the _AVProVideo.Extensions.Timeline assembly definition references.
3. Add AVPRO_PACKAGE_TIMELINE to your player Preprocessor Defines to enable the scripts to be compiled.
