Ambisonic WAV Writer

This component will generate a WAV file containing the Ambisonics audio that was captured by the AmbisonicSource components.

The WAV Writer will start collecting audio when the main CaptureFrom component begins capturing, so that the audio will be in sync with the video captured.

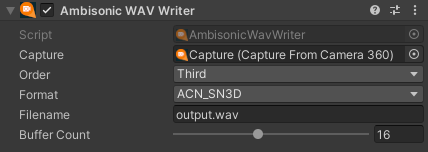

Properties

Property	Function
Capture	The CaptureFrom component to use for starting and stopping this audio capture
Order	The ambisonic order to encode with. Higher orders require more audio channels but have improved spatialisation. The WAV file will have 4 channels for 1st order, 9 channels for 2nd order, and 16 channels for 3rd order Ambisonics.
Format	Whether to use FUMA or SN3D channel ordering and normalisation standards
Filename	The filename to output (eg audio.wav). The file will be stored relative to Unity's Application.persistentDataPath
Buffer Count	Number of buffers to allocate for performance
