iOS / tvOS Platforms

Plugin Specs

  • Compatibility
    • Unity 2020.3 and later is supported
    • iOS 12.0 and later is supported
    • tvOS 12.0 and later is supported
    • Xcode 15.1 and later is supported
  • Rendering
    • Metal is supported
    • Multi-threaded rendering is supported
  • Internals
    • Under the hood we’re using Apple's AVFoundation and CoreVideo APIs

Supported Media

See the Supported Media section for more information.

Streaming

See the Streaming section for more information.

Platform-Specific Options

See the Platform-Specific Options section for more information.

Streaming

  • By default streaming requires that the HTTPS protocol is used. If you want to support streaming via HTTP you need to enable this explicitly. Look for the "Allow downloads over HTTP" option in the "Other Settings" pane of the iOS and tvOS player settings inspector.

Y'CbCr Video Output Mode

Apple platforms have support for Y'CbCr textures which has lower memory overheads and is slightly more performant when compared with standard BGRA32 textures. This option is disabled by default and can be enabled on the MediaPlayer in at Platform Specific section:

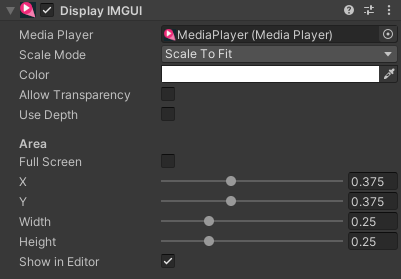

alt_text

The DisplayIMGUI and DisplayUGUI components automatically detect the use of Y'CbCr mode and switch to a suitable shader. ApplyToMesh/ApplyToMaterial also detect this setting and try to set up the shader on the material to the correct settings, however it requires the shader to have the correct properties. The AVPro Video shaders support this, so if you want to use this on a mesh then make sure you’re using these shaders.
